Infineum M8220
Outstanding product designed for high BMEP engines

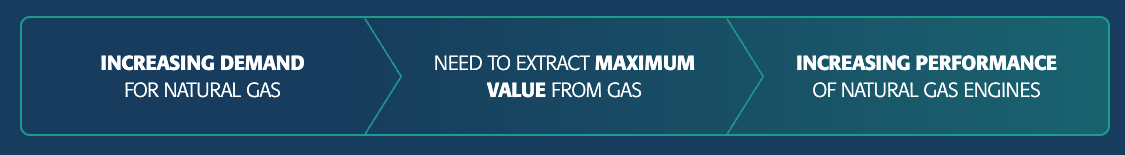

Energy demand is rising globally. Bridging the gap to low carbon future fuels, natural gas is seen as a greener source of energy, preferred over fossil fuels and nuclear energy.
Infineum M8220 is the next generation additive lubricant formulated specifically to deliver outstanding protection and durability in high efficiency stationary gas engines that must deliver more power and lower emissions.
The advanced formulation is being assessed against future needs and evolution via field testing with alternative gas including hydrogen and ammonia.
PERFORMANCE
Designed to meet the most severe natural gas engine requirements
High pressure
High temperature
High load/BMEP
Technology well-suited for aluminum and steel piston
Compatible with after-treatment devices, including catalyst systems
FORMULATION
Formulated to outperform other technologies
Salicylates
- Outstanding engine cleanliness and deposit control
- Better TBN retention
- Better engine wear control
Low Phosphorous 300 ppm, low sulphated ash 0.5% mass
- Fully compatible with catalysts and operation with clean gas
- Compatible with engines from all major OEMs
SAE 40
- API group II basestocks
Favourable labelling
- Tetra Propenyl Phenol (TPP) free
Single package, no booster
- 12.5% mass treat rate
Gas engine design evolutions targeting power and efficiency place unprecedented demands on lubricants which conventional formulations have struggled to meet.
TESTING
Proven field test results across major OEMs

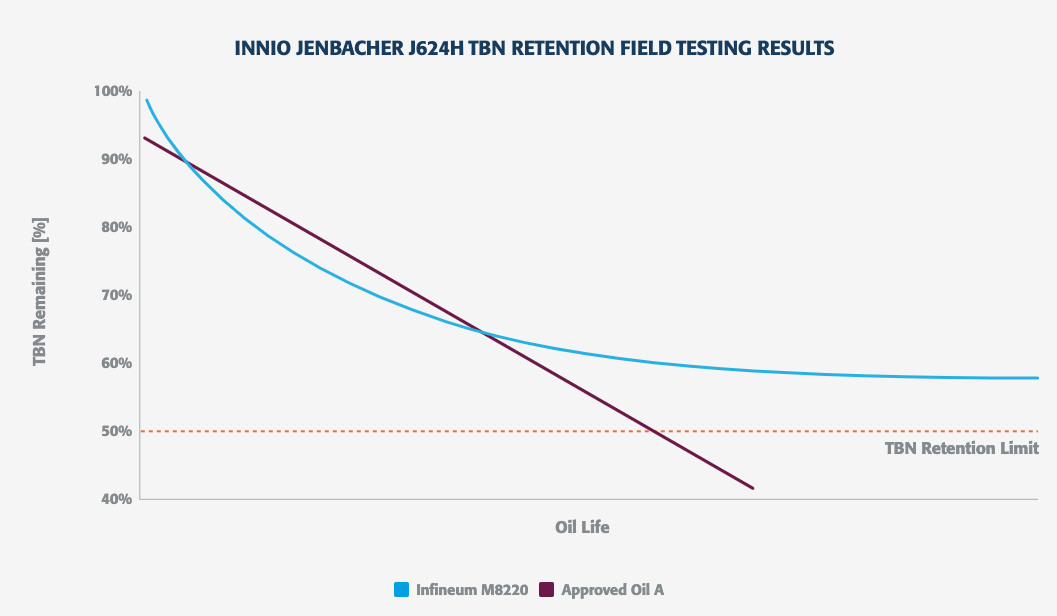

EXTENDED ODI
- Excellent TBN retention to avoid premature oil changes, reducing downtime and providing significant cost savings.
APPROVALS
Major OEMs approvals
Innio Jenbacher
Jenbacher J624H
Innio Waukesha
Waukesha L7044
GSIseries 4
(includes series 5 approval)
Man Energy Solutions
MAN ES 12V 32/40 PGI
Caterpillar
Caterpillar G3516H
TESTING
7000 hours in Caterpillar G3516H
High BMEP engine ~ 21 bar ≫ Engine operating in CHP service ≫ Infineum M8220 compared to OEM approved oil
- Strong performance in the Caterpillar G3516H
- Engine in great condition at the end of the test
- Low deposits and wear levels

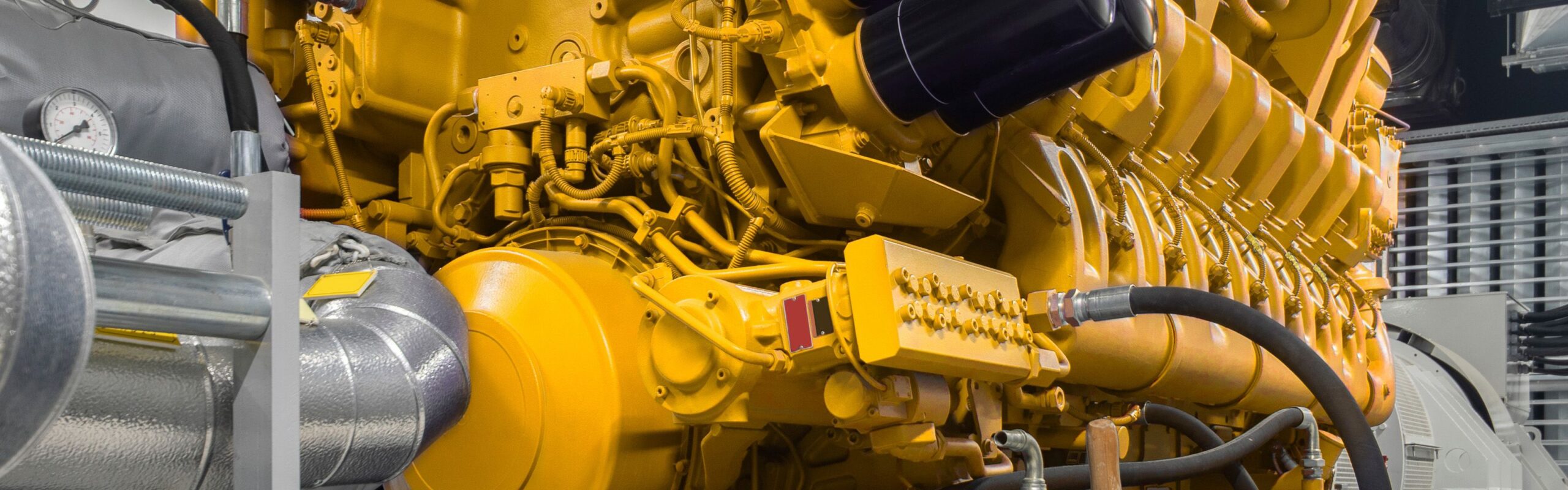

Jenbacher 624H engine in Power Generation service
